Cloud-Init Initialization Configuration

Use cloud-config and user data to manage a virtual machine's configuration at launch.

Cloud-init is the standard method for configuring a virtual machine at first boot. In Hyperstack, you provide a cloud-init script when you deploy a VM to automate setup tasks so the instance is ready to use as soon as it starts. This page covers the supported script formats, how the console checks your script before you deploy, and how to pass a script through the create virtual machine API.

For the full directive reference, see the official cloud-init documentation.

You can use a cloud-init script to automate common first-boot tasks, such as creating users, setting permissions, installing packages (for example, Docker), configuring SSH access, running commands, and starting or stopping services.

Add a cloud-init script

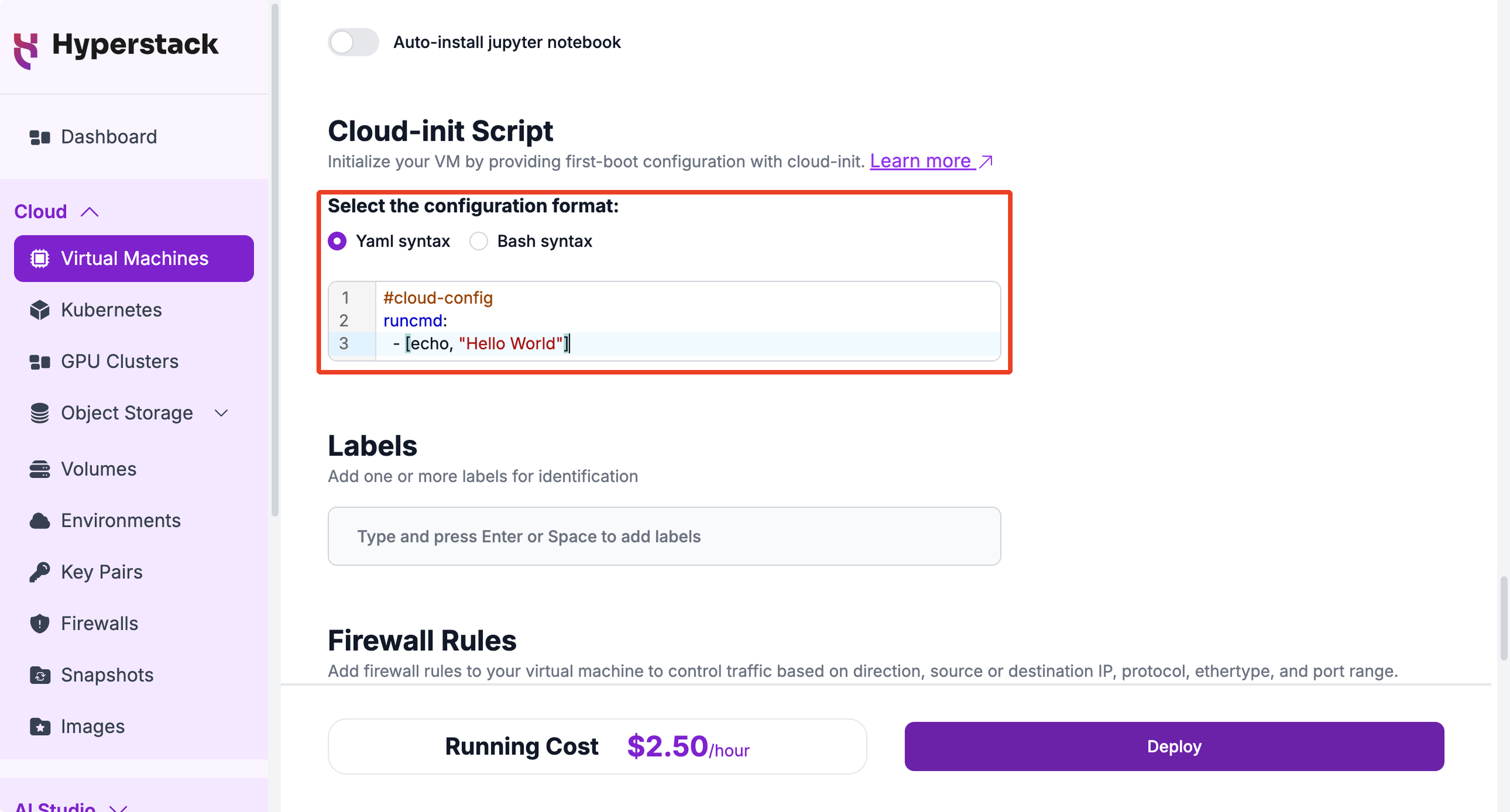

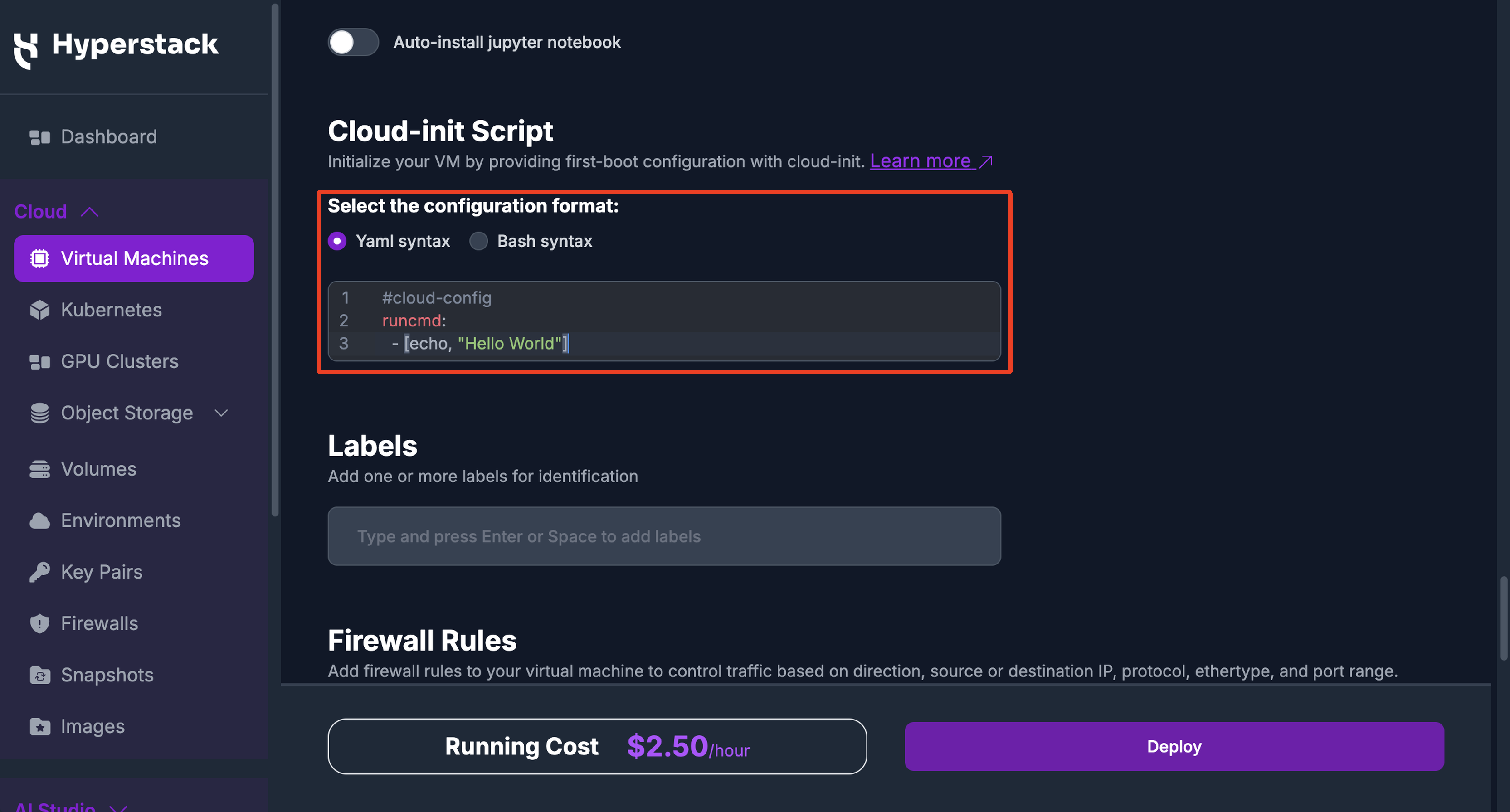

You add a cloud-init script in the Cloud-init Script section of the deployment form. Navigate to the Deploy New Virtual Machine page, click Configure Additional Settings to expand the advanced options, then scroll to the Cloud-init Script section.

Choose the format your script is written in, Yaml syntax or Bash syntax, and enter your script in the editor. The script runs when the virtual machine first boots.

Script formats

Provide your initialization data in one of two formats: a cloud-config file written in YAML, or a Bash script. Select the matching format in the deployment form, or set the user_data field when you deploy through the API. The data runs when the virtual machine first boots.

Cloud-config

Cloud-config files are written in YAML, a human-readable data serialization format. A cloud-config file uses directives to describe the configuration of a virtual machine. YAML is indentation-sensitive, so you must follow its indentation rules precisely to avoid a malformed file that cloud-init cannot run.

The first line of a cloud-config file must be the identifier #cloud-config, on its own line, so cloud-init recognizes the file. The rest of the configuration follows on the lines below, and the file must be provided when the server is created.

The following cloud-config example prepares a fresh GPU instance for machine learning work. It:

• Updates the package index and upgrades installed packages.
• Installs nvtop (a live GPU activity monitor), along with tmux, htop, git, and python3-venv.
• Creates a workspace directory owned by the default ubuntu user.
• Prints a confirmation line to the console log when setup finishes.

Example cloud-config script

#cloud-config

# Update the package index and upgrade installed packages
package_update: true
package_upgrade: true

# Install tools commonly used for machine learning work on a GPU instance
packages:
  - nvtop
  - tmux
  - htop
  - git
  - python3-venv

# Create a project workspace owned by the default user
runcmd:
  - mkdir -p /home/ubuntu/workspace
  - chown ubuntu:ubuntu /home/ubuntu/workspace

# Print a confirmation line to the console log when setup finishes
final_message: "The system is ready after $UPTIME seconds."

Bash scripts

A Bash script is another common way to pass user data to a virtual machine. The file must begin with a #!/bin/bash line to be a valid Bash script.

The following Bash example installs the same GPU and machine learning tools, then records the GPU status to a log file so you can confirm the driver is available:

Example Bash script

#!/bin/bash
# Update the package index and install useful GPU and ML tools
apt-get update
apt-get install -y nvtop tmux htop

# Save the GPU status at first boot to a log file
nvidia-smi > /var/log/gpu-status.log 2>&1

Validating your cloud-init script

As you type in the Cloud-init Script editor, the console checks your script and flags problems inline, so you can correct them before you deploy. It reports two kinds of feedback:

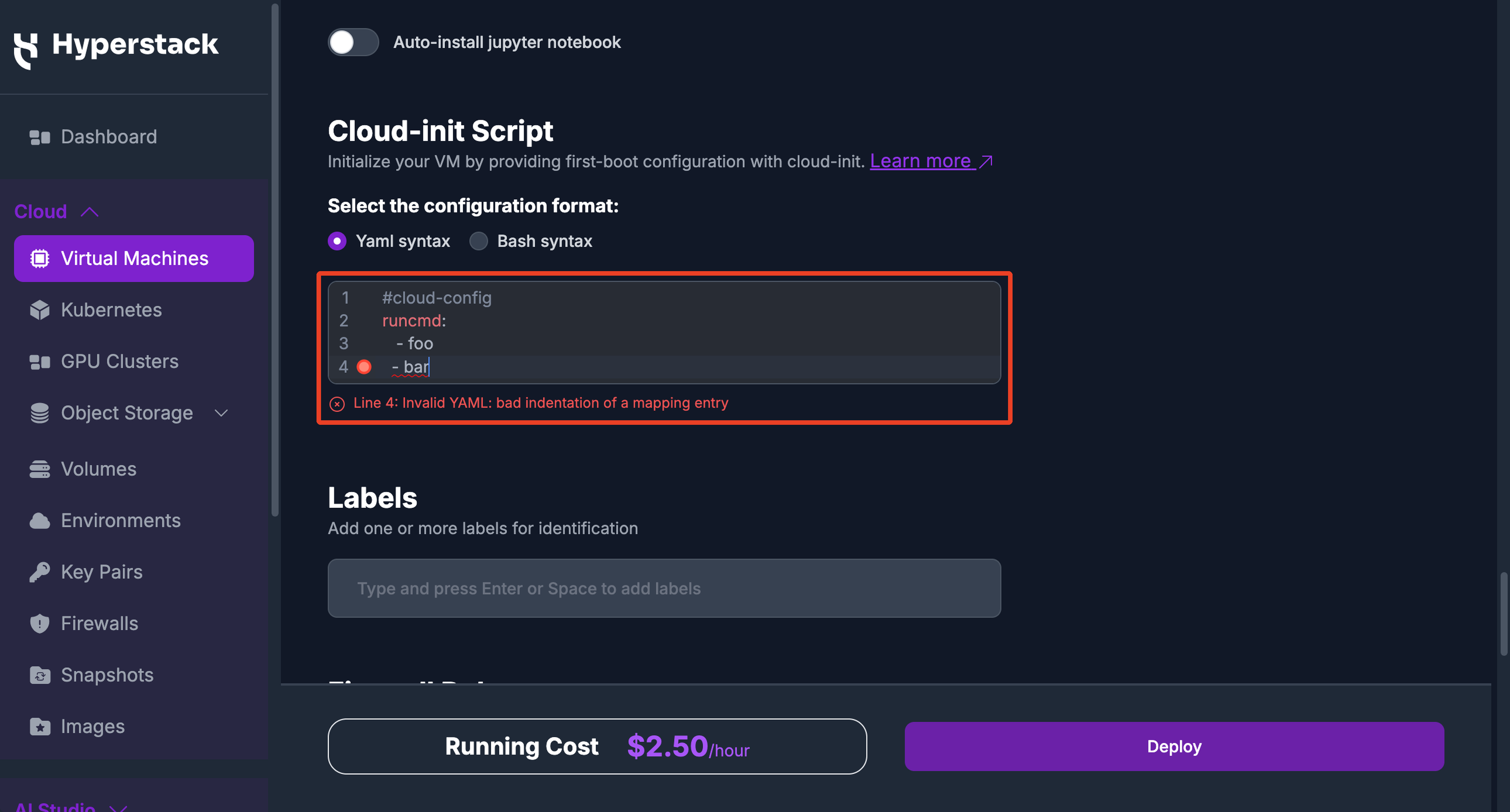

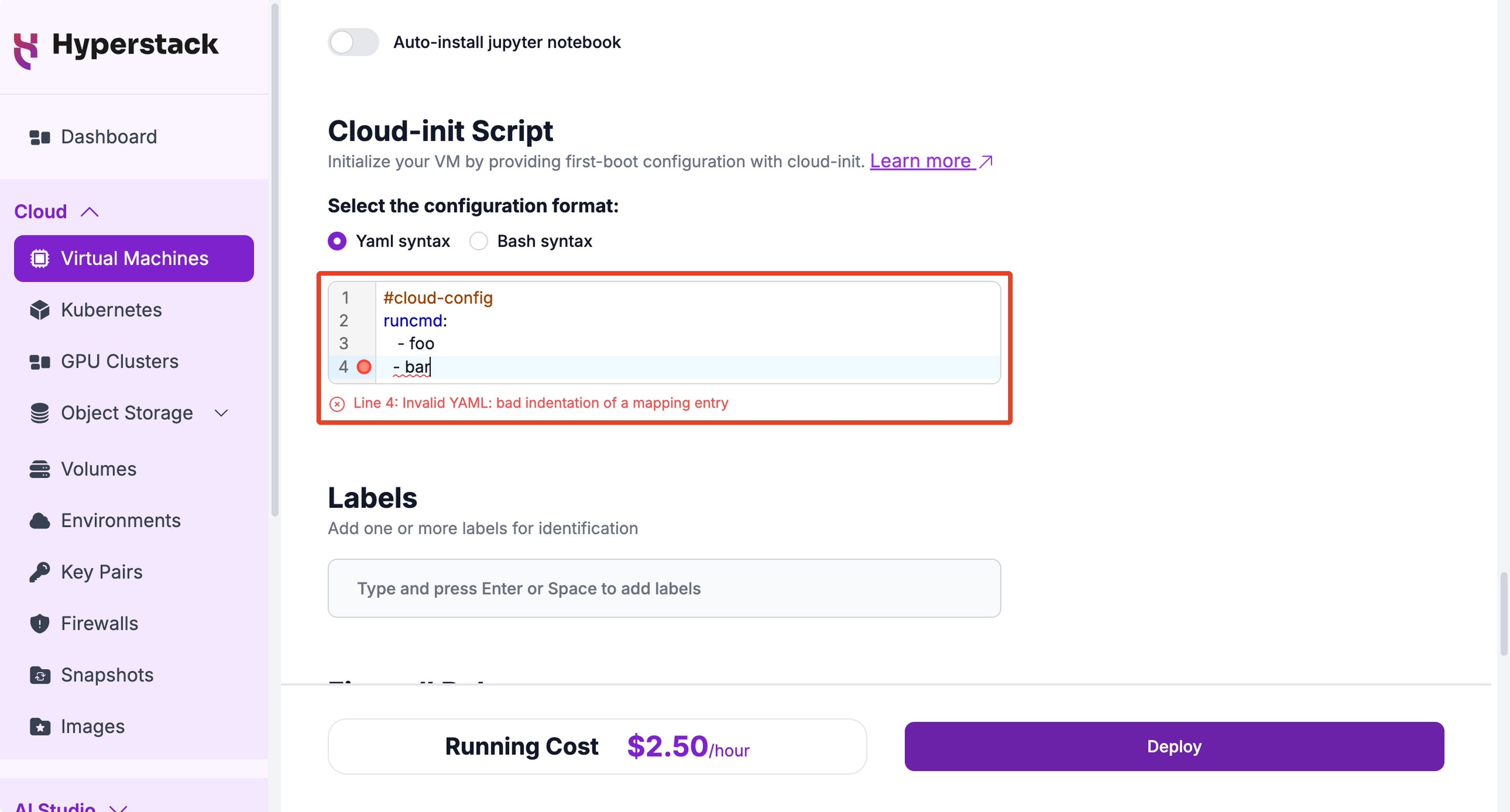

• Errors mark invalid syntax that cloud-init cannot parse. The console underlines the affected text, marks the line in the gutter, and shows a message identifying the line and the cause, such as Line 4: Invalid YAML: bad indentation of a mapping entry.
• Warnings flag advisory issues that are not syntax errors. For example, the console warns when your script looks like the other format (This looks like a Bash script, but "Yaml syntax" is selected), or when a YAML script is missing the #cloud-config identifier on its first line.

This validation is advisory. It helps you catch mistakes, but it does not block deployment: the virtual machine still deploys with the script exactly as you wrote it, and the API does not validate the user_data field. Review any reported errors before you deploy, and if you deploy through the API, validate your script before you submit it.

Initializing a virtual machine using cloud-config via API

POST/core/virtual-machines

To provide a cloud-init script through the API, set the user_data field in the request body of the create virtual machine endpoint. The script runs when the virtual machine first boots, applying the configuration you specified.

First, create the cloud-init file, user_data.txt:

cat << EOF > user_data.txt
#cloud-config

package_update: true
packages:
  - nvtop
  - tmux

runcmd:
  - mkdir -p /home/ubuntu/workspace
  - chown ubuntu:ubuntu /home/ubuntu/workspace
EOF

Then convert the file to a single-line JSON string and pass it in the user_data field of the create request:

Example curl request

# First convert the user data to a single line JSON string
user_data_content=$(jq -Rs '.' < user_data.txt)

# Then use the API to create a VM with the user data
curl --location 'https://infrahub-api.nexgencloud.com/v1/core/virtual-machines' \
--header 'Content-Type: application/json' \
--header "api_key: $API_KEY" \
--data '{
    "name": "cloud-init-example",
    "environment_name": "default-CANADA-1",
    "image_name": "Ubuntu Server 22.04 LTS R550 CUDA 12.4 with Docker",
    "flavor_name": "n3-A100x1",
    "key_name": "default-CANADA-1-key",
    "count": 1,
    "assign_floating_ip": true,
    "user_data": '"$user_data_content"'
}'

At launch, this cloud-config script updates the package index, installs nvtop and tmux, and creates a workspace directory for the default user. For the full list of request parameters, see the create virtual machine API reference.

YAML Indentation

Maintain precise indentation in your cloud-config YAML. Incorrect indentation produces a malformed file that cloud-init cannot run.
